An ip_conntrack hash bucket analysis

This directory contains some pictures made from ip_conntrack hash bucket occupation statistics. We vary the number of buckets, and we vary the hash function used.

The hash functions: crc32 crc32_2x6 crc32_bof random
The dataset: 5000

• Compare hash functions with fixed number of buckets.
  • about 8191 buckets
  • about 16383 buckets
  • about 32767 buckets
  • about 65535 buckets
  • about 131071 buckets
  • about 262143 buckets
• Compare bucket sizes with fixed hash function.
  • about 8191 buckets
  • about 16383 buckets
  • about 32767 buckets
  • about 65535 buckets
  • about 131071 buckets
  • about 262143 buckets

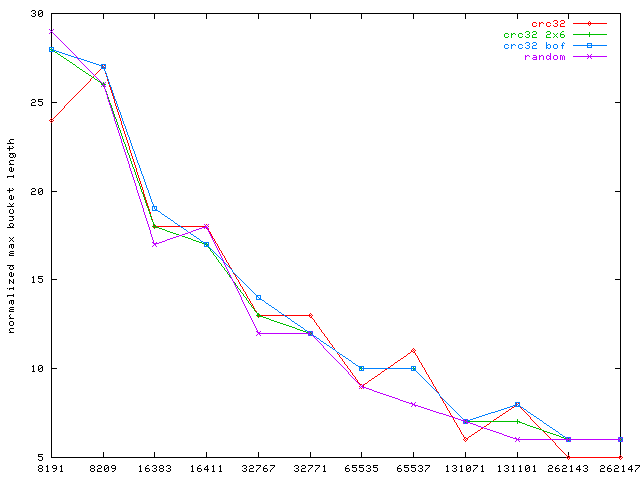

The normalized maximal bucket length

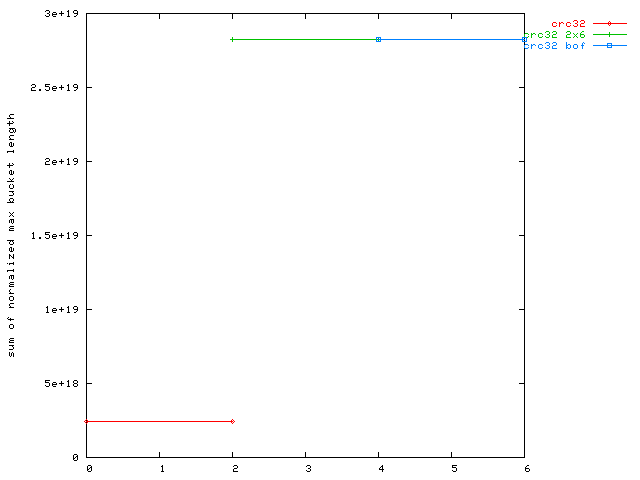

The sum of the normalized maximal bucket lengths

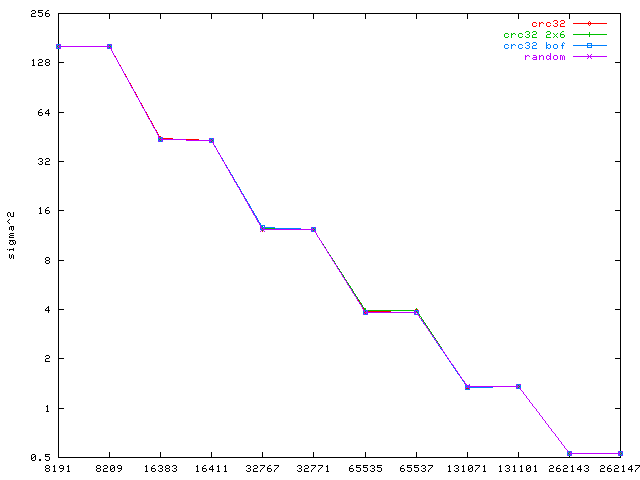

The standard deviation (sigma-square):

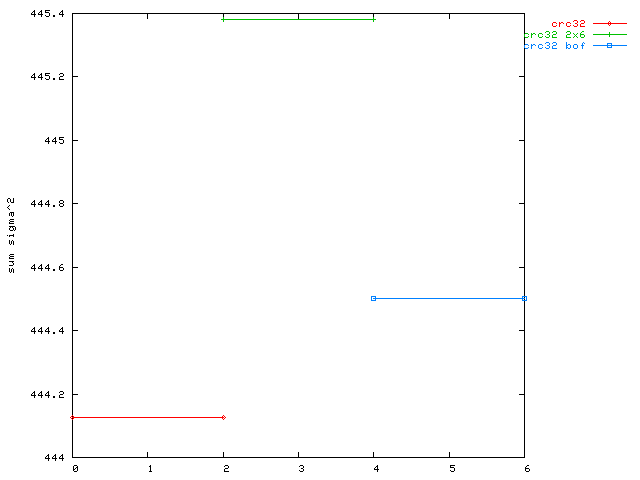

The sum of the standard deviations (sigma-square):
